It is a brand new card, well packed with ESD bag and a small carton box. Under Asterisk system, auto-config with no driver needed. It is the most stable and reliable product among all other similar products available in the market.

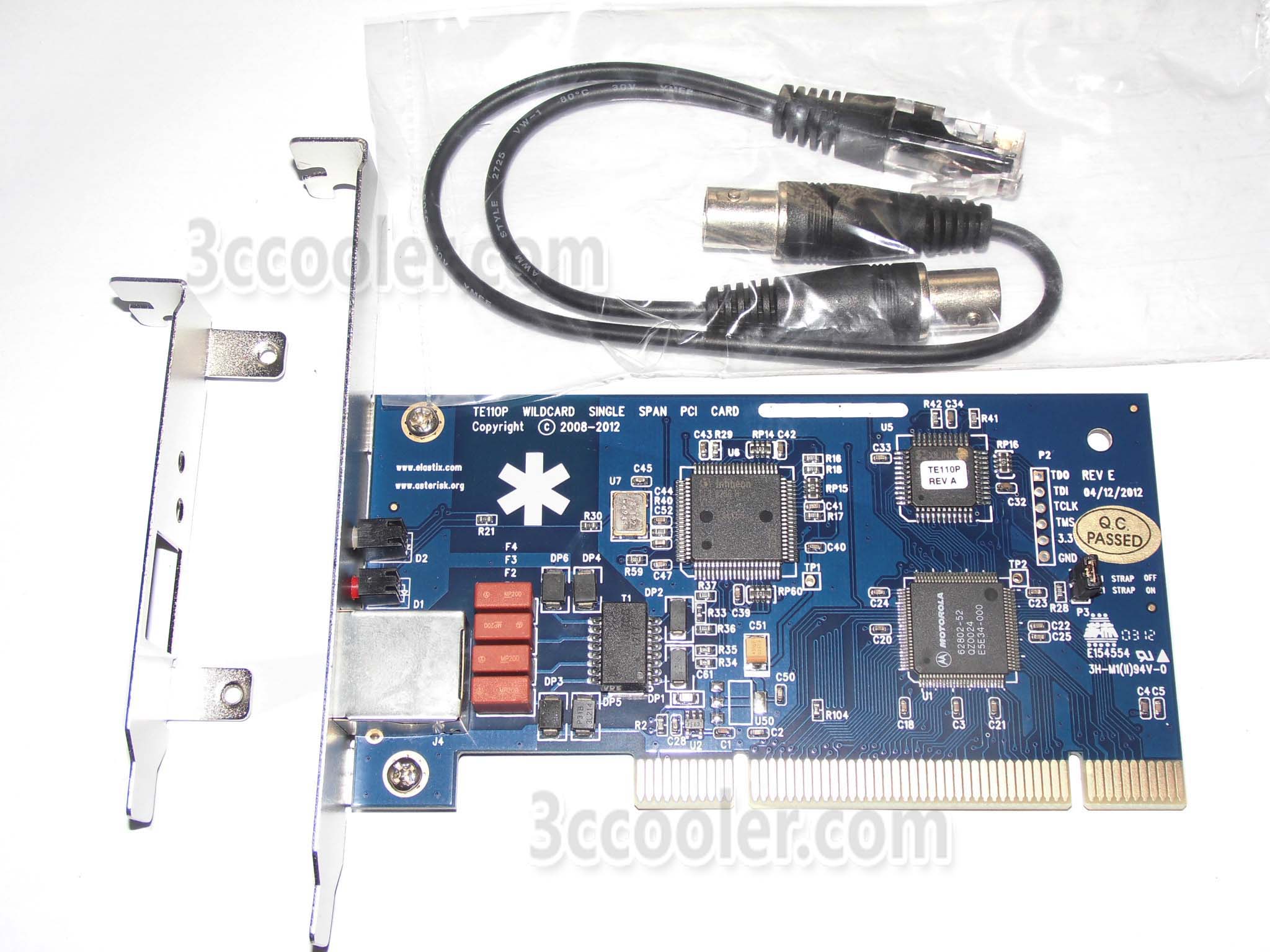

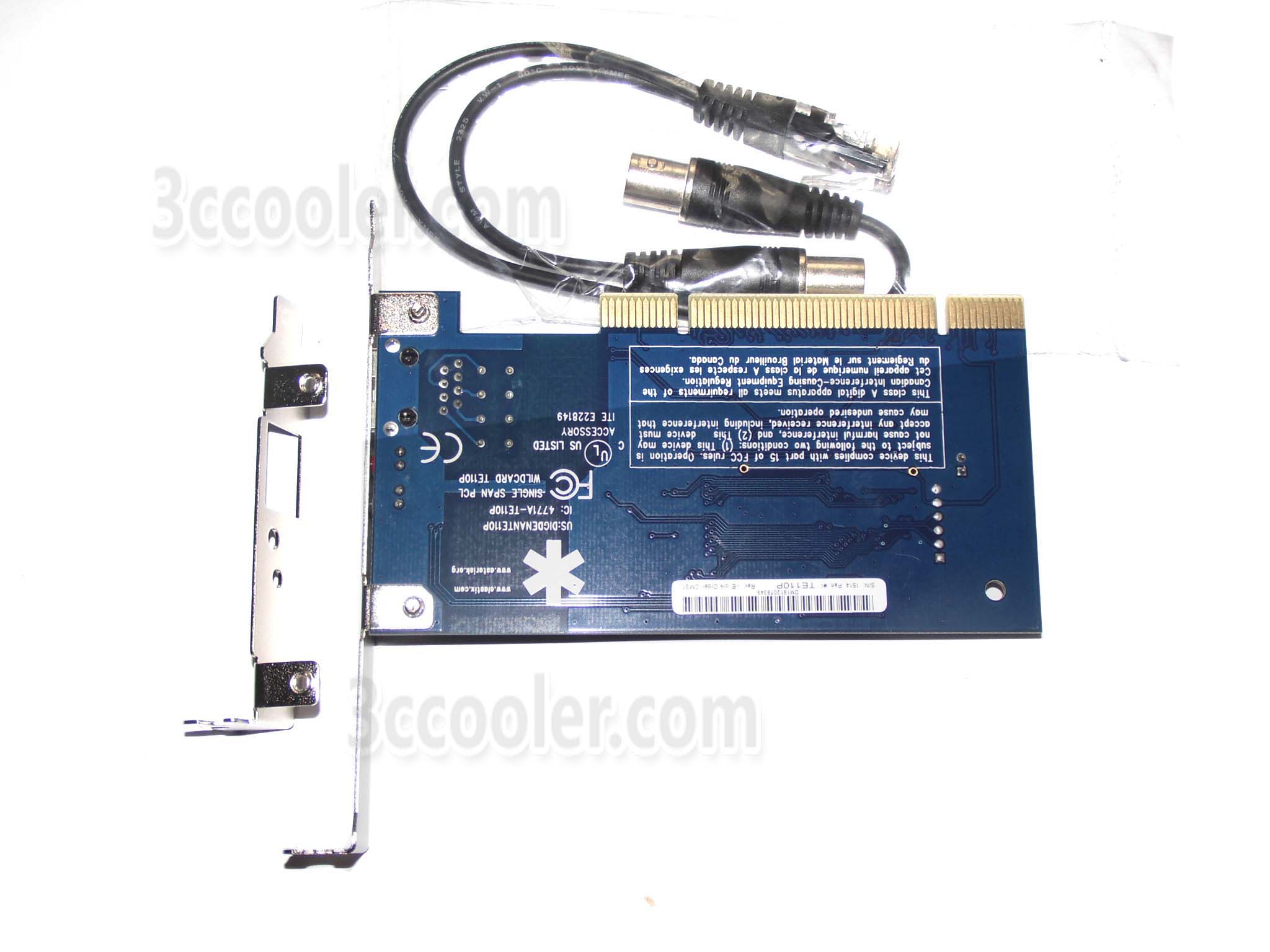

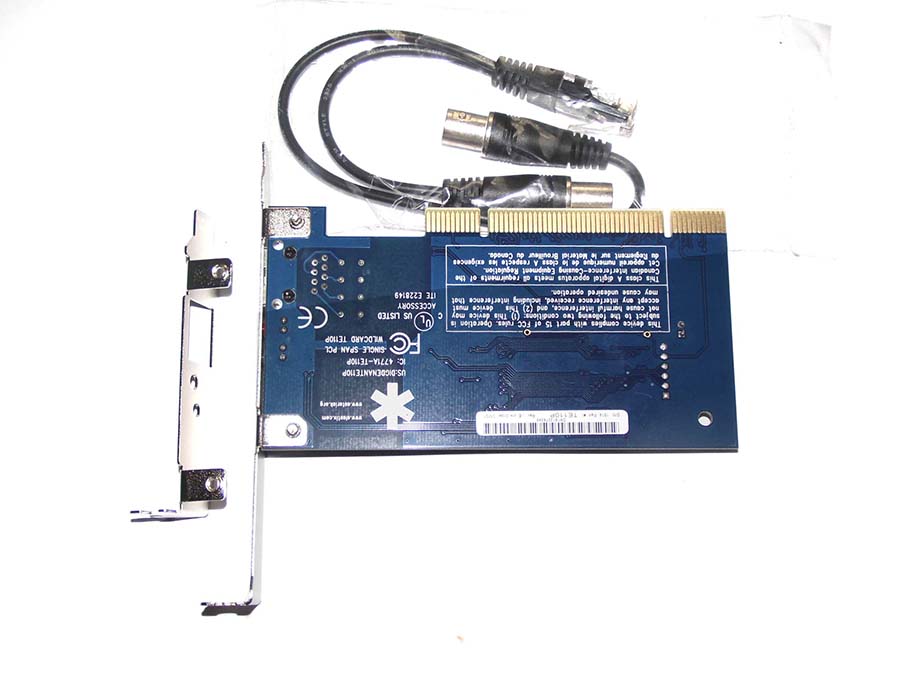

The TE110P is a single span, selectable T1 (24-channel) or E1 (32-channel) card that supports all the functionality of the Digium quad T1/E1 card. This card supports both voice and data modes on its single span. For example, the card can support 12 channels dedicated to voice and 12 to data while passing all traffic through to the Asterisk PBX, which reliably routes the channels to their designated locations. This eliminates the need for an external router.
By utilizing our TDMoE (TDM over Ethernet) technology, an exclusive Digium process, one can easily connect multiple PCs equipped with the TE110P and achieve voice quality on par with single PBX implementations. Scalability for this product is derived from adding multiple TE110Ps to each individual PC. Add addition cards as you need them for your expanding applications.
The TE110P supports industry standard telephony and data protocols, including both RBS and Primary Rate ISDN (PRI) protocol families for voice and PPP, HDLC, and Frame Relay data modes. The board drives both line-side and trunk-side interfaces, including call features.
The Wildcard TE110P brings a high-performance, cost-effective, and flexible single span togglable T1/PRI or E1/PRI interface to the Digium line-up of telephony interface devices. The TE110P is a compact and powerful interface supporting voice and data transmission over T1, E1, and Primary Rate ISDN (PRI) connections. A low profile, half-length PCI form factor allows this device to fit within a 2U rackmount case or equivalent chassis, offer excellent density for call center, service provider, and other space-sensitive applications. Of course, the TE110P is fully supported by Digium???s open source Asterisk PBX software. Used in conjunction with Asterisk, the TE110P offers the power to create a seamless network, interconnecting traditional telephony systems with the emerging Voice-over IP technologies. The TE110P can be used to deliver a wide range of PBX and IVR services to the network or handset including Voicemail, Call Conferencing, Three-Way Calling, and VoIP Gateways.
