AEX800 8 FXO Port & PCIe Interface & Echo Cancellation Module on Analog Asterisk Card For PBX VoIP

AEX800 Analog Telephony Card
   AEX800 Base PCI Card (PCIe) is a half-length PCI-Express 1.0-compliant, 8 port analog interface card. It supports combinations of station and/or trunk/line modules for a total of eight 8 interfaces.

AEX800 Analog Telephony Card Overview

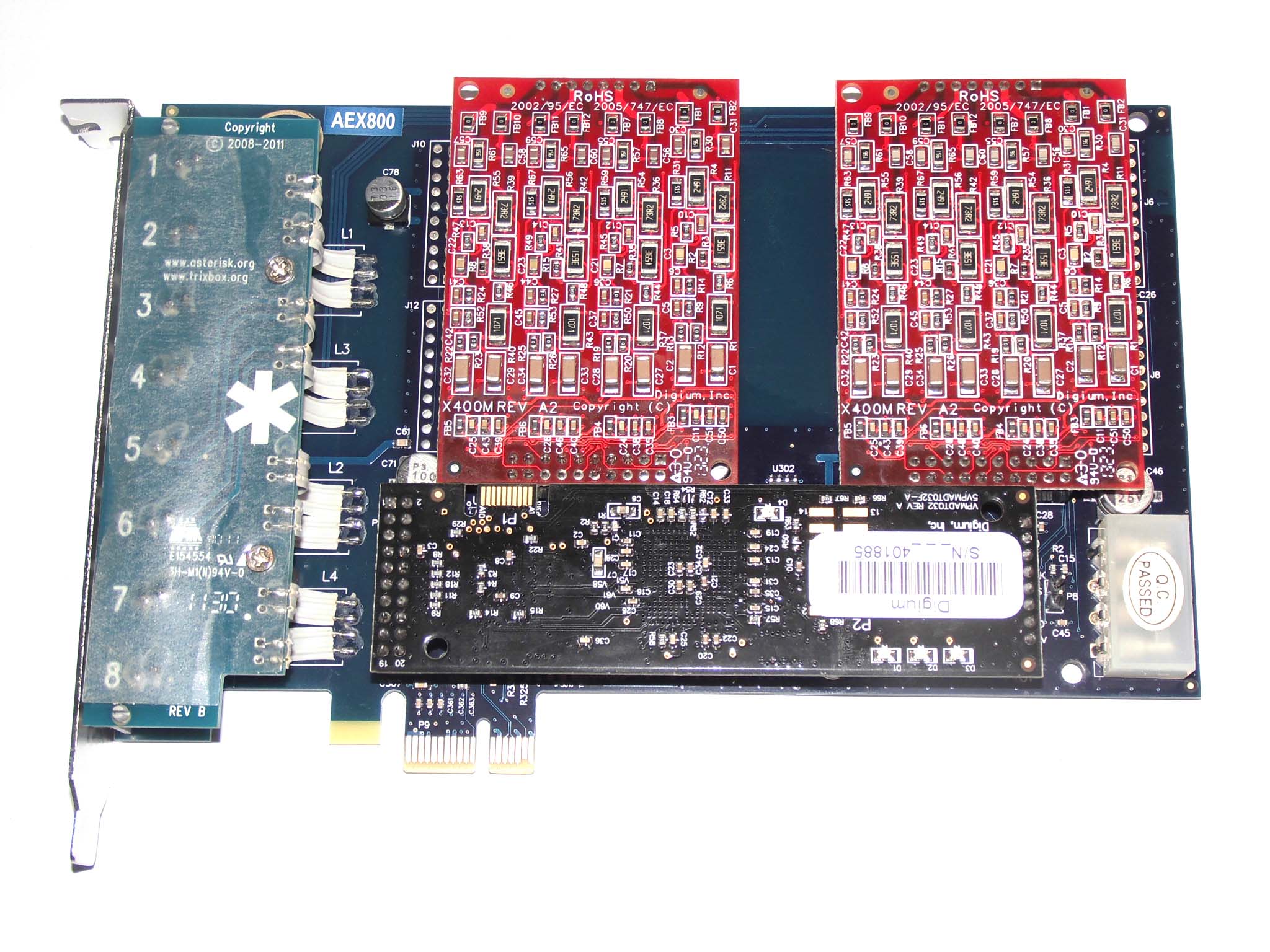

   Like the PCI-based TDM800P, the AEX800 provides an industry first with 8 standard two-wire, RJ-11 interfaces on a single card bracket. This eliminates the need for multiple brackets, external dongles, or splitters. In doing so, the AEX800 reduces part complexity, cable clutter, and points of failure.The AEX800 contains two module banks. Each bank supports up to four analog interfaces and may be filled either with one standard quad station S400M or line/trunk X400M analog module, or up to two standard single analog station S110M or line/trunk X100M modules, enabling the creation of any combination of ports.The optional VPMADT032 hardware echo cancellation module provides 1024 taps 128 milliseconds of echo cancellation for superior echo cancellation on both types of analog interfaces.
   Using the AEX800 in concert with Asterisk software, standard PC hardware, and the Linux OS, you can create SMB or SOHO telephony environments capable of satisfying the needs of small or medium business applications at an industry-leading price.

AEX800 Features and Functions
   -- PCI Express 1.0 compliant
   -- Up to 8 line (FXO) or station (FXS) ports.
   -- 8 standard two-wire, RJ-11 interfaces on a single card bracket
   -- Optional VPMADT032 hardware echo cancellation module
